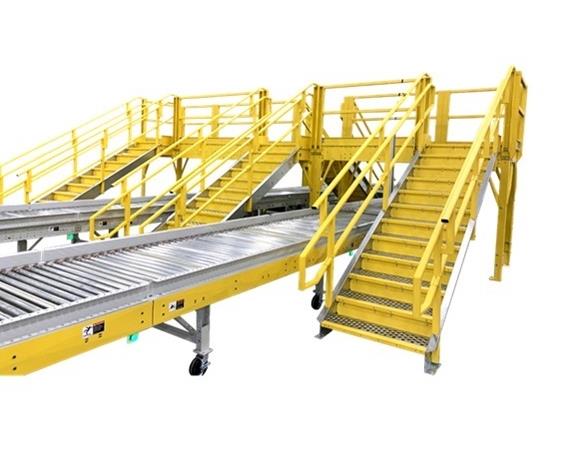

Conveyor Crossovers

Easily reconfigurable.

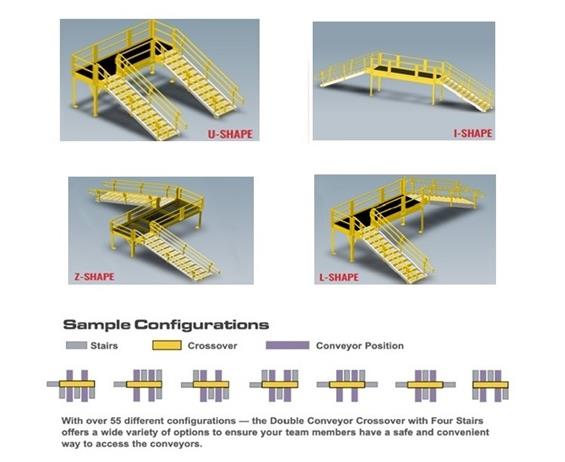

Crossover ladders allow workers a code compliant exit and egress plan within the building. This single kit of parts allows the crossover to be raised in increments of 2 inches up to 2 feet in height. The components in the crossover kit; railings, posts, and beams have been designed to meet OSHA standards and the stairs have been designed to meet IBC standards. The stairs in this kit of parts enables you to raise the crossover approximately three to four inches, if higher than this rise is required then a different set of stairs would be needed. Constructed with high-quality hot-dipped galvanized and powder coated steel, our customizable and configurable systems can be taken apart and put back together easily in a different location if needed and they're also designed, out of the box, to build a U-shaped, Z-shaped, L-shaped and I-shaped crossover based on your footprint-without extra parts or cost. FOB Shipping Point.

Surcharge may apply.

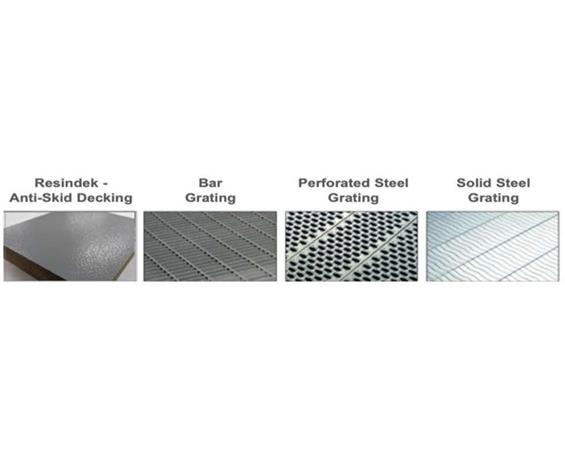

Product No.	Description	Decking	Size W x D x H	Top of Deck	Clearance Ht. Below Beam	Adjustability	Stairs Qty/Model	Wt. (lbs.)	Price Ea.
HECC01R	Single Wide - Standard Height	Resindek	168 x 48 x 80-1/8"	6' 9-1/8"	5'6-1/8"	3"	2-IBC11	2580.9	$25,700.00
HECC01BG	Single Wide - Standard Height	Bar Grating	168 x 48 x 80-1/8"	6' 9-1/8"	5'6-1/8"	3"	2-IBC11	2580.9	$27,659.00
HECC01PG	Single Wide - Standard Height	Perforated Grating	168 x 48 x 80-1/8"	6' 9-1/8"	5'6-1/8"	3"	2-IBC11	2580.9	$25,200.00
HECC01SG	Single Wide - Standard Height	Solid Grating	168 x 48 x 80-1/8"	6' 9-1/8"	5'6-1/8"	3"	2-IBC11	2580.9	$25,221.00
HECC01-TR	Single Wide - Extended Height	Resindek	168 x 48 x 93-1/8"	7'9-1/8"	6'6-1/8"	4"	2-IBC13	2756.9	$30,084.00
HECC01-TBG	Single Wide - Extended Height	Bar Grating	168 x 48 x 93-1/8"	7'9-1/8"	6'6-1/8"	4"	2-IBC13	2756.9	$32,043.00
HECC01-TPG	Single Wide - Extended Height	Perforated Grating	168 x 48 x 93-1/8"	7'9-1/8"	6'6-1/8"	4"	2-IBC13	2756.9	$30,173.00
HECC01-TSG	Single Wide - Extended Height	Solid Grating	168 x 48 x 93-1/8"	7'9-1/8"	6'6-1/8"	4"	2-IBC13	2756.9	$30,215.00
HECC02R	Double Wide - Standard Height	Resindek	216 x 48 x 80-1/8"	6'9-1/8"	5'4-1/8"	3"	2-IBC11	3100	$29,277.00
HECC02BG	Double Wide - Standard Height	Bar Grating	216 x 48 x 80-1/8"	6'9-1/8"	5'4-1/8"	3"	2-IBC11	3100	$31,051.00
HECC02PG	Double Wide - Standard Height	Perforated Grating	216 x 48 x 80-1/8"	6'9-1/8"	5'4-1/8"	3"	2-IBC11	3100	$25,096.00
HECC02SG	Double Wide - Standard Height	Solid Grating	216 x 48 x 80-1/8"	6'9-1/8"	5'4-1/8"	3"	2-IBC11	3100	$25,193.00
HECC02-TR	Double Wide - Extended Height	Resindek	216 x 48 x 93-1/8"	7'9-1/8"	6'4-1/8"	4"	2-IBC13	3256.6	$33,172.00
HECC02-TBG	Double Wide - Extended Height	Bar Grating	216 x 48 x 93-1/8"	7'9-1/8"	6'4-1/8"	4"	2-IBC13	3256.6	$35,541.00
HECC02-TPG	Double Wide - Extended Height	Perforated Grating	216 x 48 x 93-1/8"	7'9-1/8"	6'4-1/8"	4"	2-IBC13	3256.6	$33,288.00
HECC02-TSG	Double Wide - Extended Height	Solid Grating	216 x 48 x 93-1/8"	7'9-1/8"	6'4-1/8"	4"	2-IBC13	3256.6	$33,435.00
HECC02-XLR	Double Wide - Extended Length	Resindek	292 x 48 x 80-1/8"	6'9-1/8"	5'8-1/8"	3"	2-IBC11	3083	$30,544.00
HECC02-XLBG	Double Wide - Extended Length	Bar Grating	292 x 48 x 80-1/8"	6'9-1/8"	5'8-1/8"	3"	2-IBC11	3083	$32,944.00
HECC02-XLPG	Double Wide - Extended Length	Perforated Grating	292 x 48 x 80-1/8"	6'9-1/8"	5'8-1/8"	3"	2-IBC11	3083	$30,292.00
HECC02-XLSG	Double Wide - Extended Length	Solid Grating	292 x 48 x 80-1/8"	6'9-1/8"	5'8-1/8"	3"	2-IBC11	3083	$30,282.00
HECC02-XLTR	Double Wide - Extended Height/Extended Length	Resindek	292 x 48 x 80-1/8"	7'9-1/8"	6'9-1/8"	4"	2-IBC13	3287	$34,000.00
HECC02-XLTBG	Double Wide - Extended Height/Extended Length	Bar Grating	292 x 48 x 80-1/8"	7'9-1/8"	6'9-1/8"	4"	2-IBC13	3287	$37,436.00
HECC02-XLTPG	Double Wide - Extended Height/Extended Length	Perforated Grating	292 x 48 x 80-1/8"	7'9-1/8"	6'9-1/8"	4"	2-IBC13	3287	$34,784.00
HECC02-XLTSG	Double Wide - Extended Height/Extended Length	Solid Grating	292 x 48 x 80-1/8"	7'9-1/8"	6'9-1/8"	4"	2-IBC13	3287	$34,774.00
